how to port lvgl to the plaftformio (esp-idf framework)

Posted by kingrom
5:50 pm
31/01/2024

Hi everyone,
I’m currently encountering a challenge in determining whether I am on the right way porting LVGL to the
PlatformIO using the ESP-IDF framework. My goal is to display widgets on a TFT display.
Below, I’ve outlined the procedure I followed to port LVGL to the PlatformIO (ESP-IDF framework):

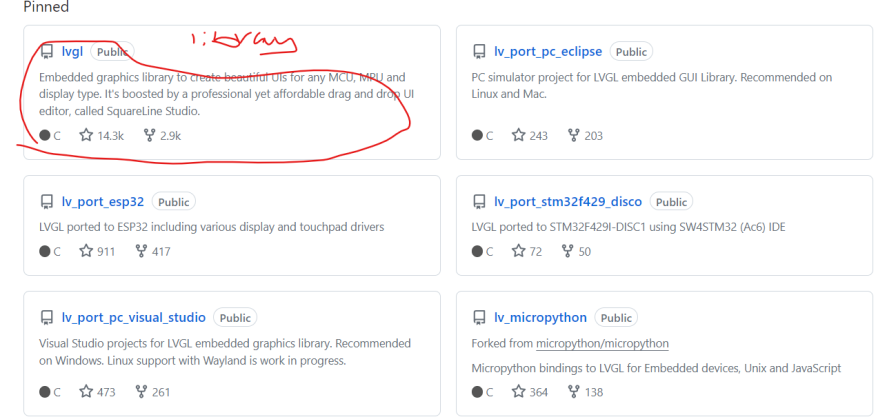

Step 1: I will download the lvgl library and lv_port_esp32 from lvgl GitHub as shown at the image:

Step 2: I will download the display driver and touch controller driver from GitHub as shown below:
https://github.com/lvgl/lvgl_esp32_drivers

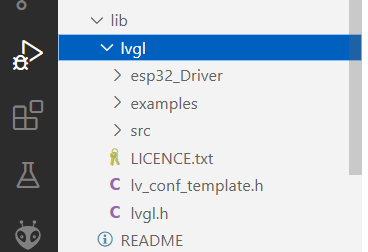

Step 3: I only place certain folders on the Platformio lib project file which display and touch driver c file
and header, example folder copy from lvgl GitHub, src folder from lvgl GitHub, and licence.txt &
lv_conf_template.g and lvgl.h from lvgl GitHub. File tree as show at the image :

step4 : I am not sure how to include those into cmake or platformio ini file actually I am not sure need
include those library whather into cmake or platformio ini

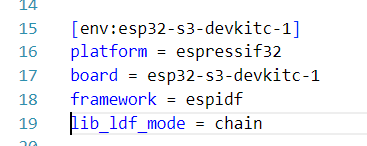

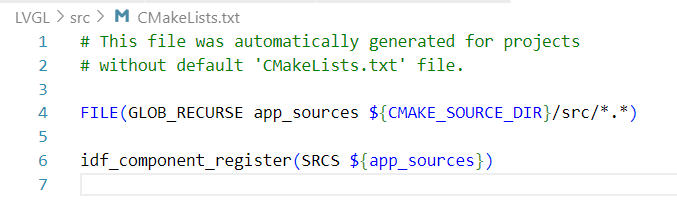

Below is my cmake file and platformio ini :

I hope someone can give me some guidance what is the proper way to use lvgl on platoformio (esp-idf
framework).
